RAM® Drill-Down Double Ball Mount with Universal Action Camera Adapter

The RAM-B-138-A-GOP1U consists of a 2.5" diameter round base with the universal AMPS hole pattern, SHORT size double socket arm and 1" diameter ball with custom GoPro® Hero adapter.

The mount is designed with a RAM 1" diameter patented rubber ball and socket system that has adjustment points at both ends of the double socket arm; this allowing for almost infinite adjustment and perfect viewing angles.

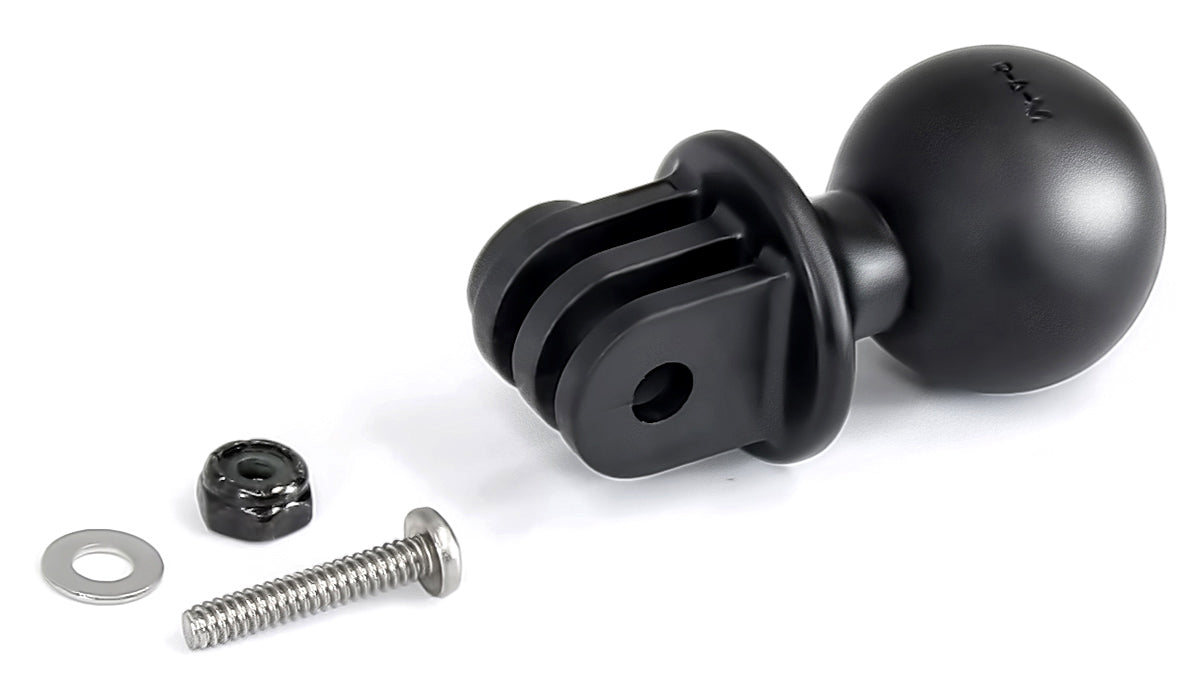

The RAM-B-138-A-GOP1U can be used as a drill-down or a temporary, removable mounting solution with the addition of the RAP-339U accessory. The GoPro® Hero adapter attaches directly to the under-side of the camera, replacing the factory mounting bracket.

HARDWARE INCLUDED
Assembly Hardware

SOCKET-TO-SOCKET LENGTH
1.75"

HOLE PATTERN
4-Hole AMPS: 1.181" x 1.496"
3-Hole 120-Degree: 1.812" Diameter

PLATE SIZE
2.5" Diameter

BALL/SOCKET SIZE
B Size (1")

WEIGHT CAPACITY
2 lbs

MATERIALS
Marine-grade aluminum
High strength composite

PACKAGING TYPE
Poly Bag

WEIGHT
0.49 lbs.
